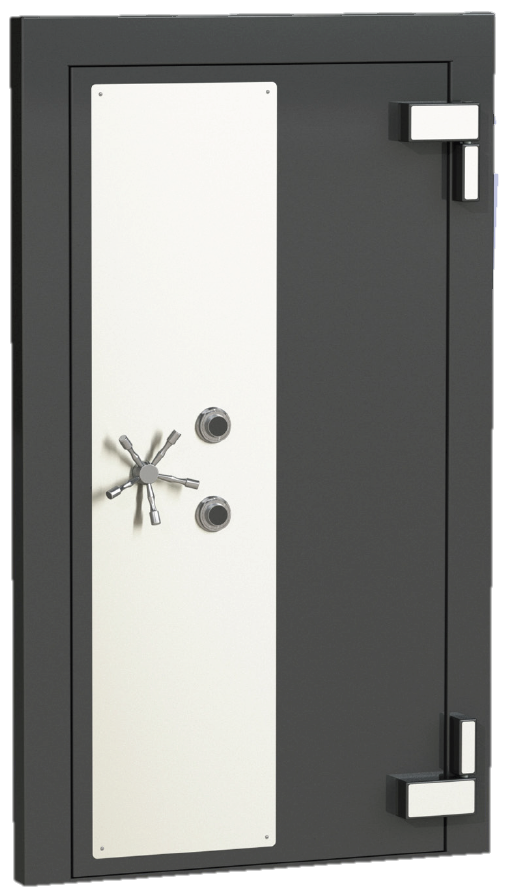

Hamilton UL-1 Hyde Park Vault Door (Class I, II & III)
Having a secure safe to protect your most important items is one thing but having a secure vault with a high-security vault door is another level. Imagine the only way in is through a bank-level vault door that provides a high level of protection. Many companies need the Hamilton UL-1 Hyde Park Vault Door, including banks & credit unions, pharmacies, jewelry stores, government agencies, military installations, and other commercial industries.
There are three levels of security on the Hamilton UL-1 Hyde Park Vault Door. A Class 1 rating is equivalent to a UL TL-30 rating and is rated for burglar protection for 30 minutes. The Class 2 rating is 60 minutes, and Class 3 offers 120 minute UL rating. This vault door also meets the requirements for UL 10 C, UL 10B, and ULC S104 for a 3-hour fire resistance rating with a hose stream. It also has a ballistic rating that meets the UL 752 standard.
The Hamilton UL-1 Hyde Park Vault Door has a standard clear opening of 80.00" high by 36.00" wide. The masonry opening is 87.50" high by 50.00" wide. The outside features a maintenance-free stainless steel construction and is painted a powder-coated charcoal gray finish. There are five locking bolts and a full-length deadman bar to prevent pry attacks on the door. There are two four wheel UL listed Group 2M mechanical dial combination locks plus a UL-listed three-movement time lock that is 144-hour resettable. Other lock options include a Group One combination lock or a high-security electronic lock.
If you are inside the Hamilton UL-1 Hyde Park Vault Door and it is locked, an emergency release mechanism allows you to get out. You can also order the door in a right hand swing (hinges on the right hand side as you are looking from the outside of the door) or a left hand swing (hinges on the left hand side as you are looking from the outside of the door. A daygate is standard and allows you to keep the door open while keeping the room locked during the day.
There are many different upgrades and customizations for the Hamilton UL-1 Hyde Park Vault Door. You can add access control, electric strike for the daygate, daygate closer, customized logo on the daygate, and custom colors. These colors include Black, Parchment Gray, Leatherette, and Instrument Tan.
If you're unsure which door you need, call us at 800-207-2259. We can help you pick the right door for your needs.
Innovative Design Benefits:
- Life safety features designed into the vault door
- An extra layer of security with a built-in "dead-man bar"
- Rigid vault door frame and trim allow for easy groutless installation and covers the complete opening
Standard Equipment:
- UL Class I, II, & III Rating
- Class 1 is 30 minutes, Class 2 rating is 60 minutes, and class 3 rating is 120 minute UL security rating
- Class 1 - Standard 4" Wall Thickness
- Class 2 - Standard 7" Wall Thickness
- Class 3 - Standard 10" Wall Thickness
- Clear Opening: 80.00" H x 36.00" W (standard size)
- Masonry Opening: 87.50" H x 50.00" W
- Maintenance-Free Stainless Steel Construction and Painted Powder Coated Charcoal Gray
- Hamilton's vault doors and frame assembly meet the requirements of UL 10C, UL10B, and ULC S104 for a three-hour fire-resistance rating with a hose stream
- Ballistic Rating: UL 752 Standard
- Five Locking Bolts with Full-Length Deadman Bar
- 2 Four Wheel UL Listed Group 2M Mechanical Combination Locks
- UL Listed Three-Movement Time Lock - 144-Hour Resettable
- Emergency Release Mechanism Safe
- Heat Sensor and Door Contact with Terminal Strip Connection
- Standard Framed Smoked Acrylic
- Right or Left Swing
- Shipping Crate Size: 36.50" H x 62.25" W x 90.50" D
- VDUL-STDDG Daydate is included in the price - Daygate: Painted steel frame acrylic daygate - Surface mount on the rear of Vault Door
Optional:
- UL Listed Group One Combination Locks
- Access control
- Electric strike for daygate
- Daygate Closer
- Customized logo on daygate
- High Security Electronic Locks
- Door Buck-frame for existing non-vault vault walls
- Colors: Black, Parchment, Gray, Leatherette, Instrument Tan
