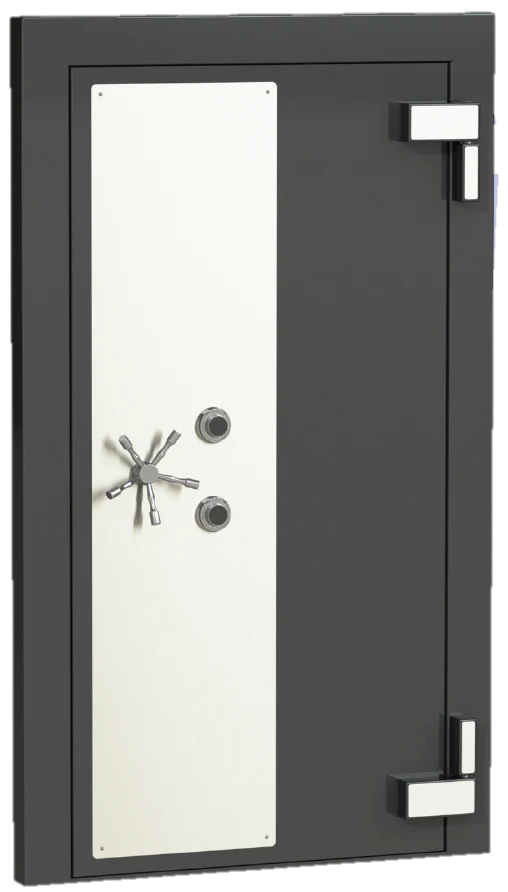

Hamilton UL-M Milford Series Vault Door (UL Class M)
Having a secure safe to protect your most important items is one thing but having a secure vault with a high-security vault door is another level. Imagine the only way in is through a bank-level vault door that provides a high level of protection. Many companies need the Hamilton UL-M Milford Series Vault Door, including banks & credit unions, pharmacies, jewelry stores, government agencies, military installations, and other commercial industries.
The Hamilton UL-M Milford Series Vault Door is rated UL Class M, equivalent to a UL TL-15 rating. It is rated for burglar protection for 15 minutes. This vault door also meets the requirements for UL 10 C, UL 10B, and ULC S104 for a 3-hour fire resistance rating with a hose stream. It also has a ballistic rating that meets the UL 752 standard.
The Hamilton UL-M Milford Series Vault Door has a standard clear opening of 80.00" high by 36.00" wide. The masonry opening is 87.50" high by 50.00" wide. The outside features a maintenance-free stainless steel construction and is painted a powder-coated charcoal gray finish. A five-point locking system and a standard UL Listed 4-wheel combination lock protect the door. Other lock options include a Group One combination lock or a high-security electronic lock.
If you are inside the Hamilton UL-M Milford Series Vault Door and it is locked, an emergency release mechanism allows you to get out. You can also order the door in a right hand swing (hinges on the right hand side as you are looking from the outside of the door) or a left hand swing (hinges on the left hand side as you are looking from the outside of the door. A daygate is optional and allows you to keep the door open while keeping the room locked during the day.
There are many different upgrades and customizations for the Hamilton UL-M Milford Series Vault Door. You can add access control, electric strike for the daygate, daygate closer, customized logo on the daygate, and custom colors. These colors include Black, Parchment Gray, Leatherette, and Instrument Tan.
If you're unsure which door you need, call us at 800-207-2259. We can help you pick the right door for your needs.
Innovative Design Benefits:
- Life safety features designed into the vault door
- An extra layer of security with a built-in "dead-man bar"
- Rigid vault door frame and trim allow for easy groutless installation and covers the complete opening
Standard Equipment:
- Maintenance Free Stainless Steel and Powder Coated Charcoal Gray
- Groutless Vault Door - Weld in Place
- UL Listed Class M
- The Class M rating is a 15 minute UL Security test
- Standard 3" Wall Thickness
- Door also is acoustic rated STC 50 to 60 (Sound transmission class
- Clear Opening: 80.00" H x 36.00" W (standard size)
- Masonry Opening: 87.50" H x 50.00" W
- Hamilton's HUD-M-RS3680 vault door and frame assembly meet the requirements of UL 10C, UL10B, and ULC S104 for a three-hour fire-resistance rating with a hose stream
- Standard 4-wheel Combination Lock
- Five Point Locking System
- Emergency Release Mechanism
- Heat Sensor and Door Contact with Terminal Strip Connection
- Right or Left Swing
- Mechanical and Thermal Relockers
- 3-Hour Fire
- Ballistic Rating: UL 752 Standard
- UL Listed Drill Resistant Hard Plate
- Shipping Crate Size: 36.50" H x 62.25" W x 90.50" D
- VDUL-STDDG Add daygate as an additional option - Daygate: Painted steel frame acrylic daygate - Surface mount on the rear of Vault Door
- Weight: 2,150 Pounds
Optional:
- UL Listed Group One Combination Locks
- Access control
- Electric strike for daygate
- Daygate Closer
- Timelock
- High Security Electronic Locks
- Door Buck-frame for existing non-vault vault walls
- Colors: Black, Parchment, Gray, Leatherette, Instrument Tan
